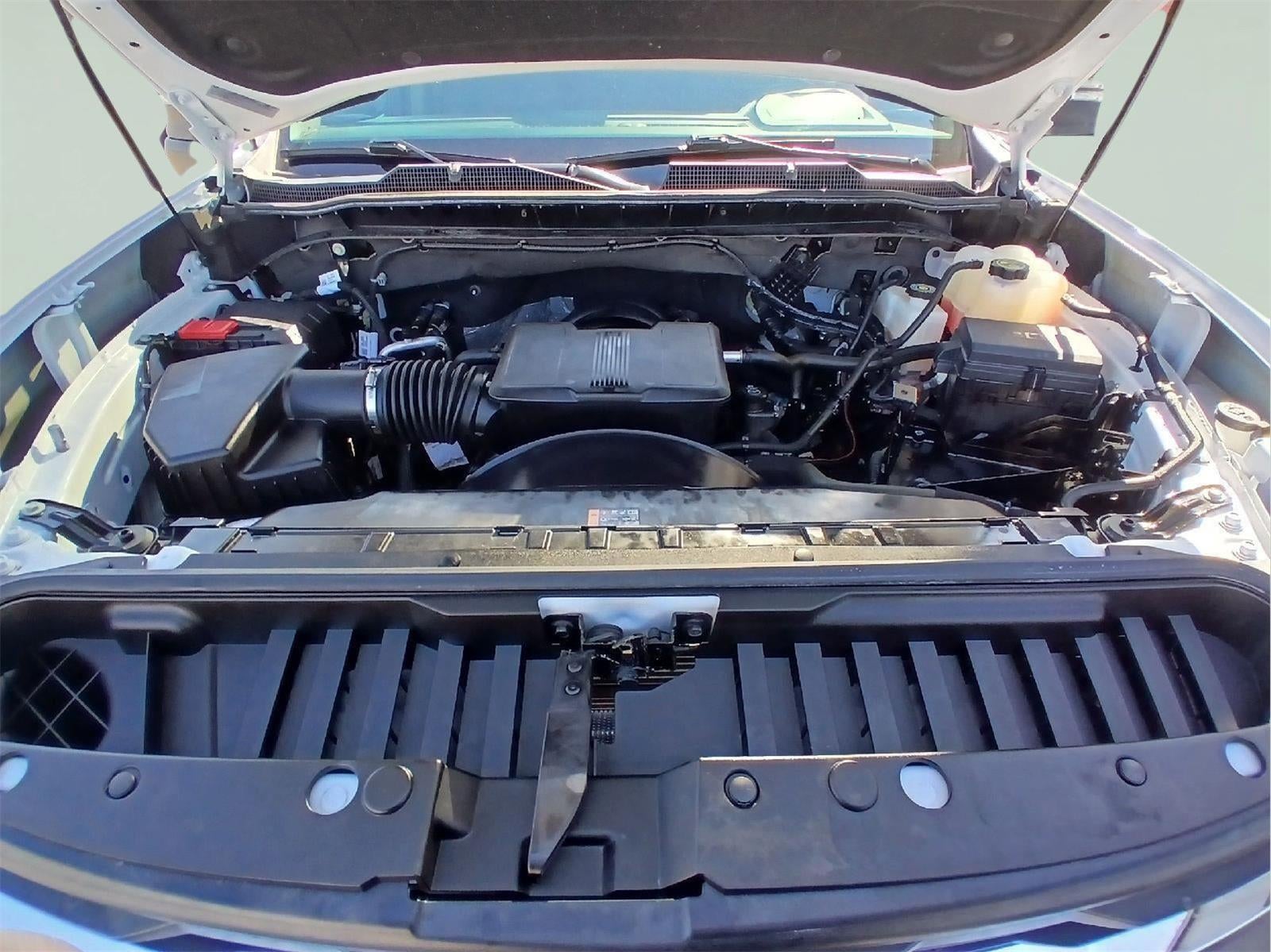

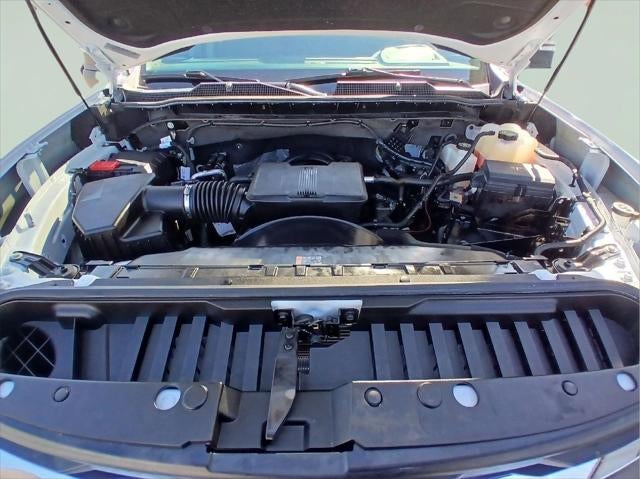

ENGINE, 6.6L V8

with Direct Injection and Variable Valve Timing gasoline (401 hp @ 5200 rpm 464 lb-ft of torque @ 4000 rpm) (STD)

• Engine
• 6.6L V8 with Direct Injection and Variable Valve Timing
• gasoline
• (401 hp @ 5200 rpm
• 464 lb-ft of torque @ 4000 rpm)
• Rear axle
• 3.73 ratio (Requires (L8T) 6.6L V8 gas engine. Not available with (L5P) Duramax 6.6L Turbo-Diesel V8 engine.)
• Durabed
• pickup bed
• GVWR
• 10
• 450 lbs. (4740 kg) (Included and only available with CK20743 model and (L8T) 6.6L V8 gas engine with 17" wheels or CC20753 model and (L8T) 6.6L V8 gas engine with 18"
• 20" or 22" wheels.)
• Air filter
• heavy-duty
• Air filtration monitoring
• Transfer case
• two-speed electronic shift with push button controls (Requires 4WD models.)
• Auto-locking rear differential
• Four wheel drive
• Cooling
• external engine oil cooler
• Cooling
• auxiliary external transmission oil cooler
• Battery
• heavy-duty 720 cold-cranking amps/80 Amp-hr maintenance-free with rundown protection and retained accessory power (Included and only available with (L8T) 6.6L V8 gas engine.)
• Alternator
• 170 amps (Requires (L8T) 6.6L V8 gas engine.)
• Trailer brake controller
• integrated
• Frame
• fully-boxed
• hydroformed front section and a fully-boxed stamped rear section
• Suspension Package
• Steering
• Recirculating Ball with smart flow power steering system
• Brakes
• 4-wheel antilock
• 4-wheel disc with DURALIFE rotors
• Brake lining wear indicator
• Capless Fuel Fill (Requires (L8T) 6.6L V8 gas engine. Not available with (ZW9) pickup bed delete.)
• Exhaust
• single
• side
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Deleted with (ZW9) pickup bed delete.)
• Bumper
• front chrome
• Bumper
• rear Chrome
• CornerStep
• rear bumper
• BedStep
• Black integrated on forward portion of bed on driver and passenger side (Deleted when (ZW9) pickup bed delete is ordered.)
• Moldings
• beltline
• Black
• Cargo tie downs (12)
• fixed rated at 500 lbs per corner (Deleted with (ZW9) pickup bed delete.)
• IntelliBeam
• automatic high beam on/off
• Taillamps with incandescent tail
• stop and reverse lights
• Lamps
• cargo area
• cab mounted integrated with center high mount stop lamp

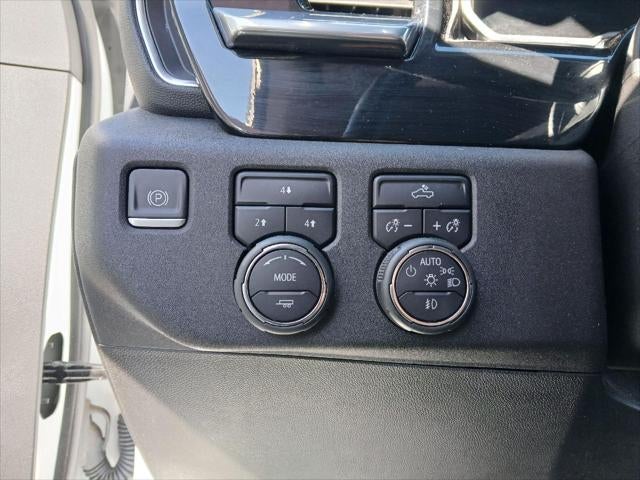

• with switch in bank on left side of steering wheel
• Mirror caps
• Black
• Glass
• deep-tinted
• Tailgate
• standard (Deleted with (ZW9) pickup bed delete.)
• Tailgate and bed rail protection cap
• top
• Tailgate
• gate function manual with EZ Lift includes power lock and release (Deleted when (ZW9) pickup bed delete is ordered. Not available with (PCM) Convenience Package II unless (QK2) Multi-Flex tailgate is ordered.)
• Door handles
• body-color

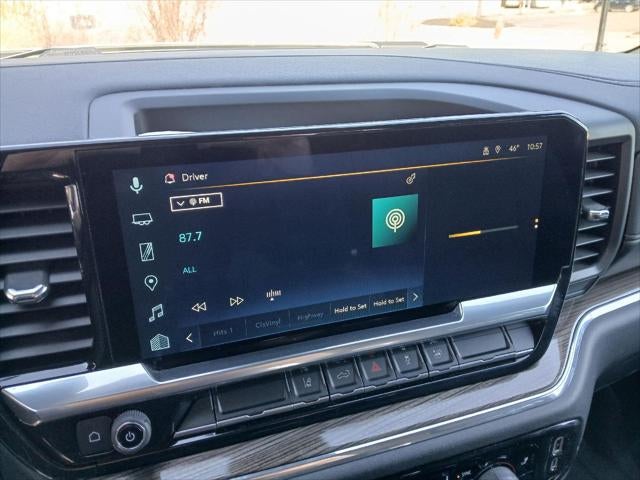

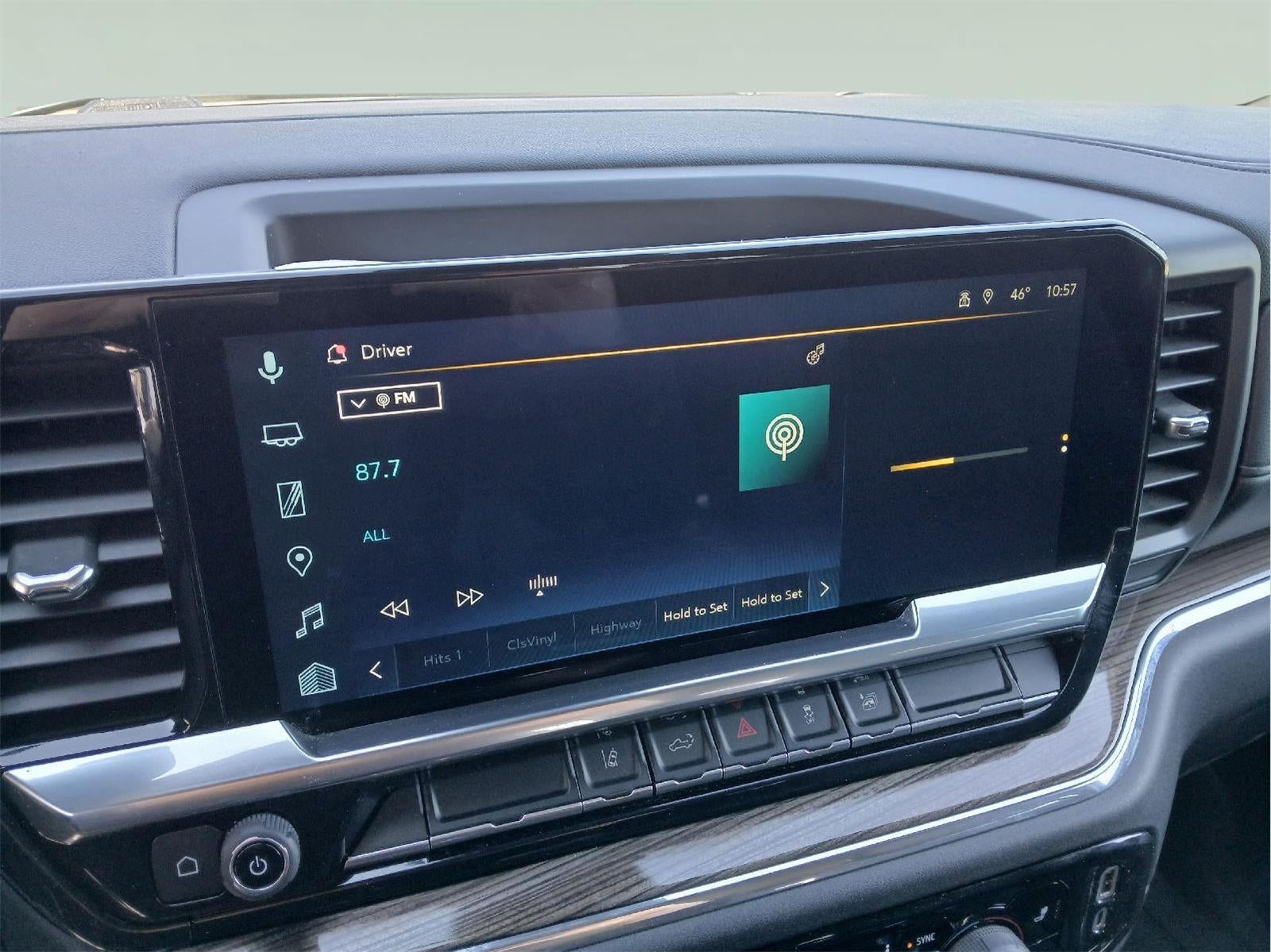

• Audio system feature
• 6-speaker system (Requires Crew Cab or Double Cab model.)
• Steering wheel audio controls
• Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Seat adjuster
• driver 4-way manual
• Seat adjuster
• passenger 4-way manual
• Floor covering
• color-keyed carpeting
• Steering wheel
• wrapped

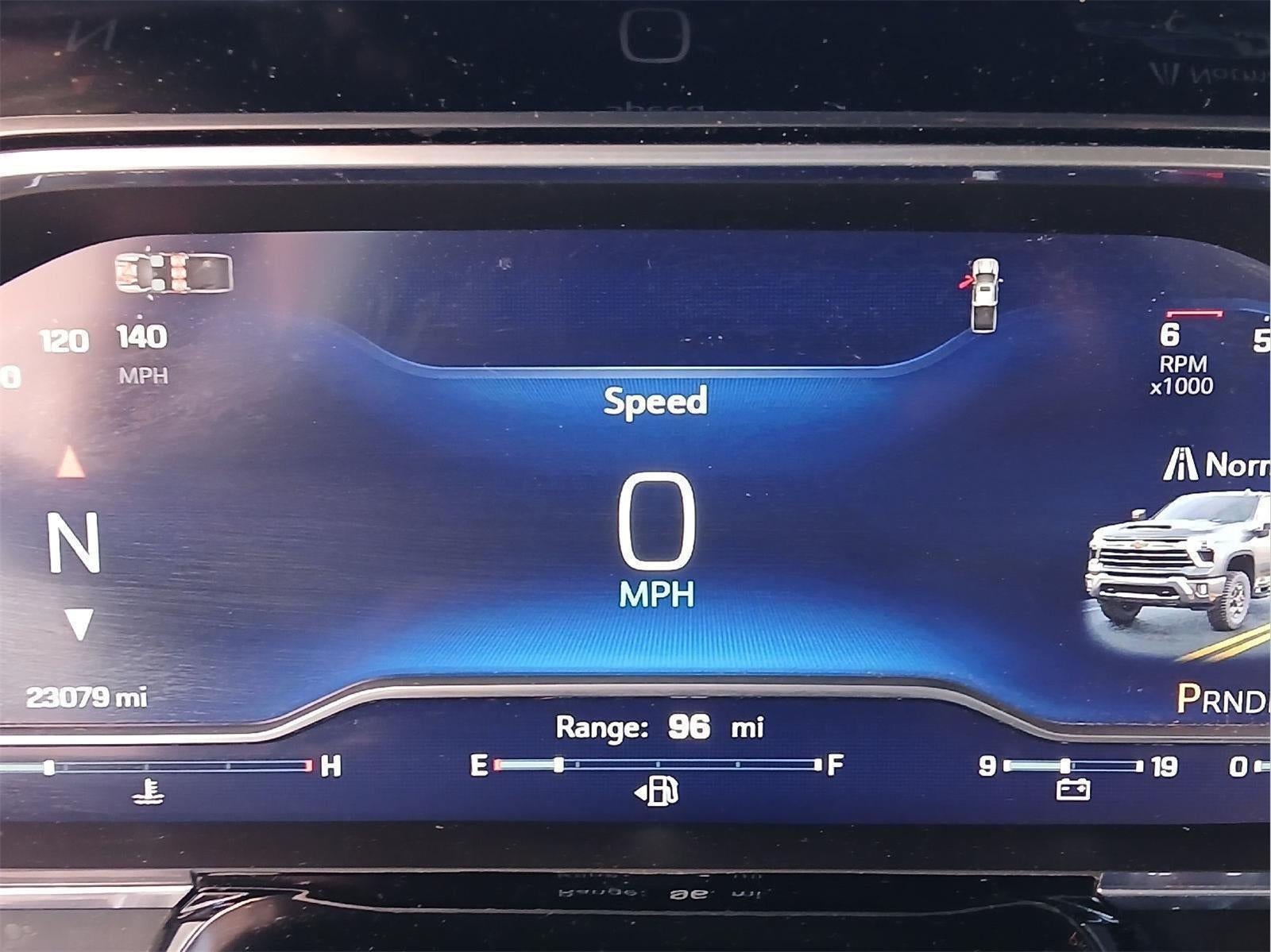

• Driver Information Center
• enhanced

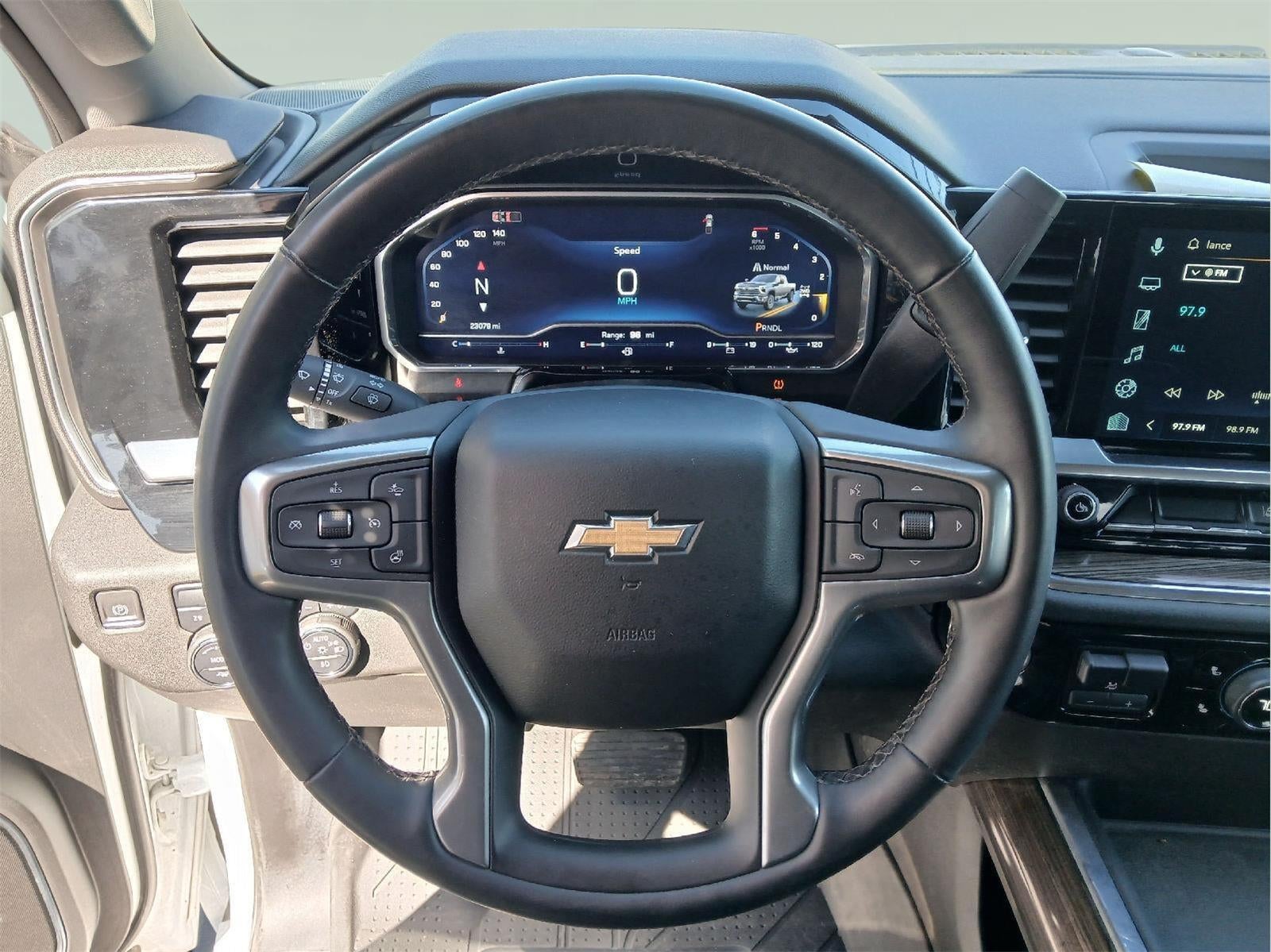

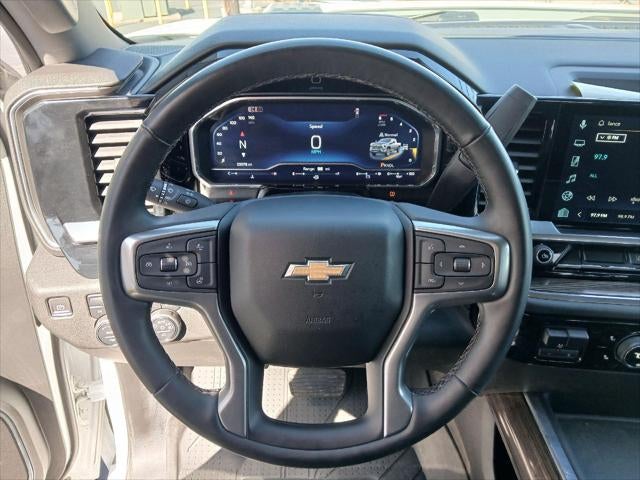

• 12.3" diagonal reconfigurable multicolor digital display
• Exterior Temperature Display located in radio display
• Compass located in instrument cluster
• Rear Seat Reminder (Requires Crew Cab or Double Cab model.)
• Window
• power front
• drivers express up/down
• Windows
• power rear
• express down (Not available with Regular Cab models.)

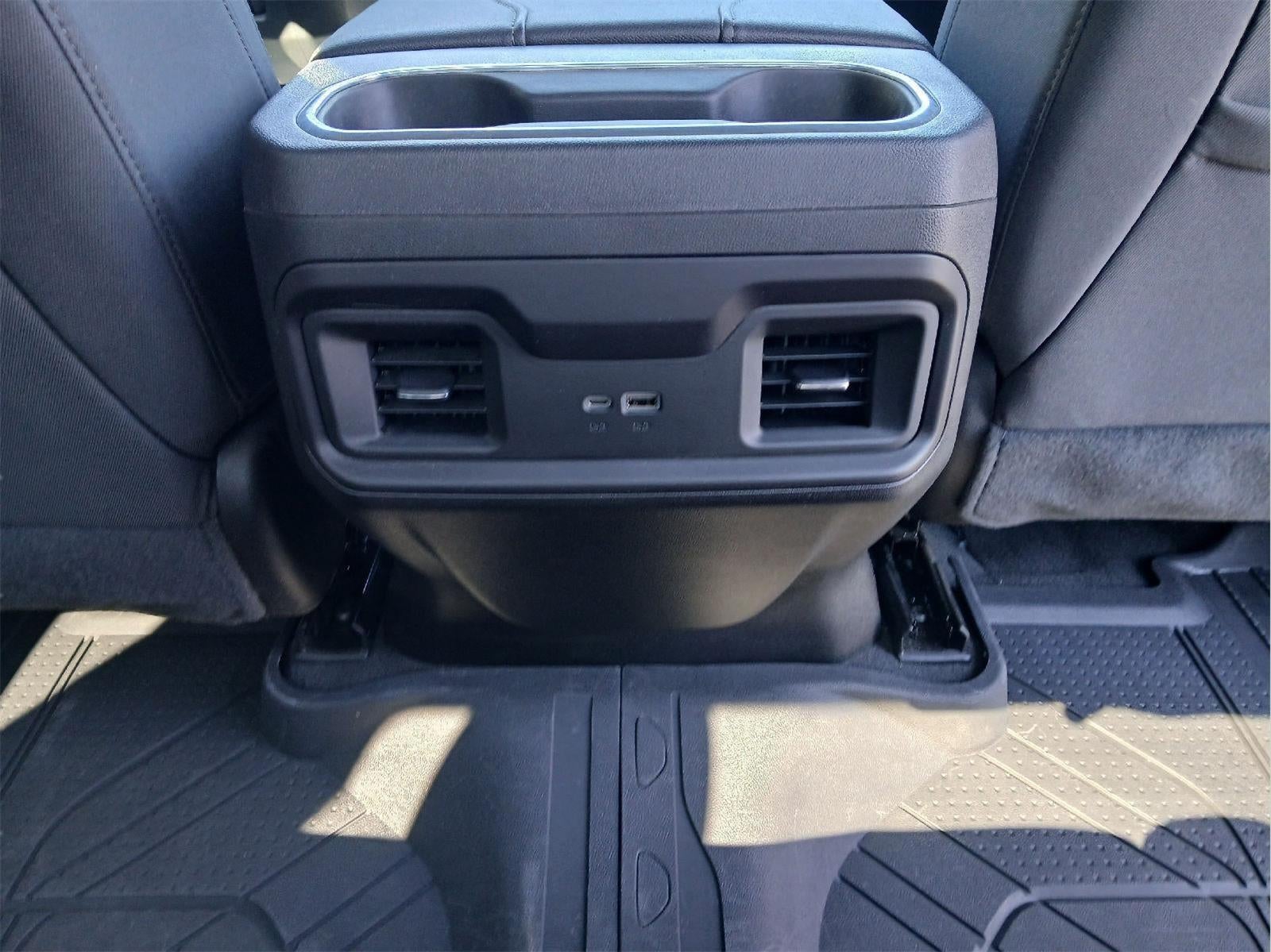

• Air vents
• rear
• heating/cooling (Not available on Regular Cab models.)
• Mirror
• inside rearview
• manual tilt
• Assist handles front A-pillar mounted for driver and passenger
• rear B-pillar mounted
• Chevrolet Connected Access capable (Subject to terms. See onstar.com or dealer for details.)
• StabiliTrak stability control system with Proactive Roll Avoidance and traction control
• includes electronic trailer sway control and hill start assist
• Airbags
• dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)

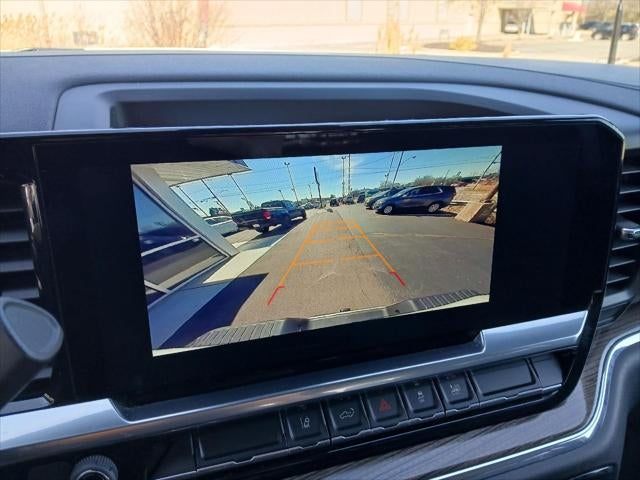

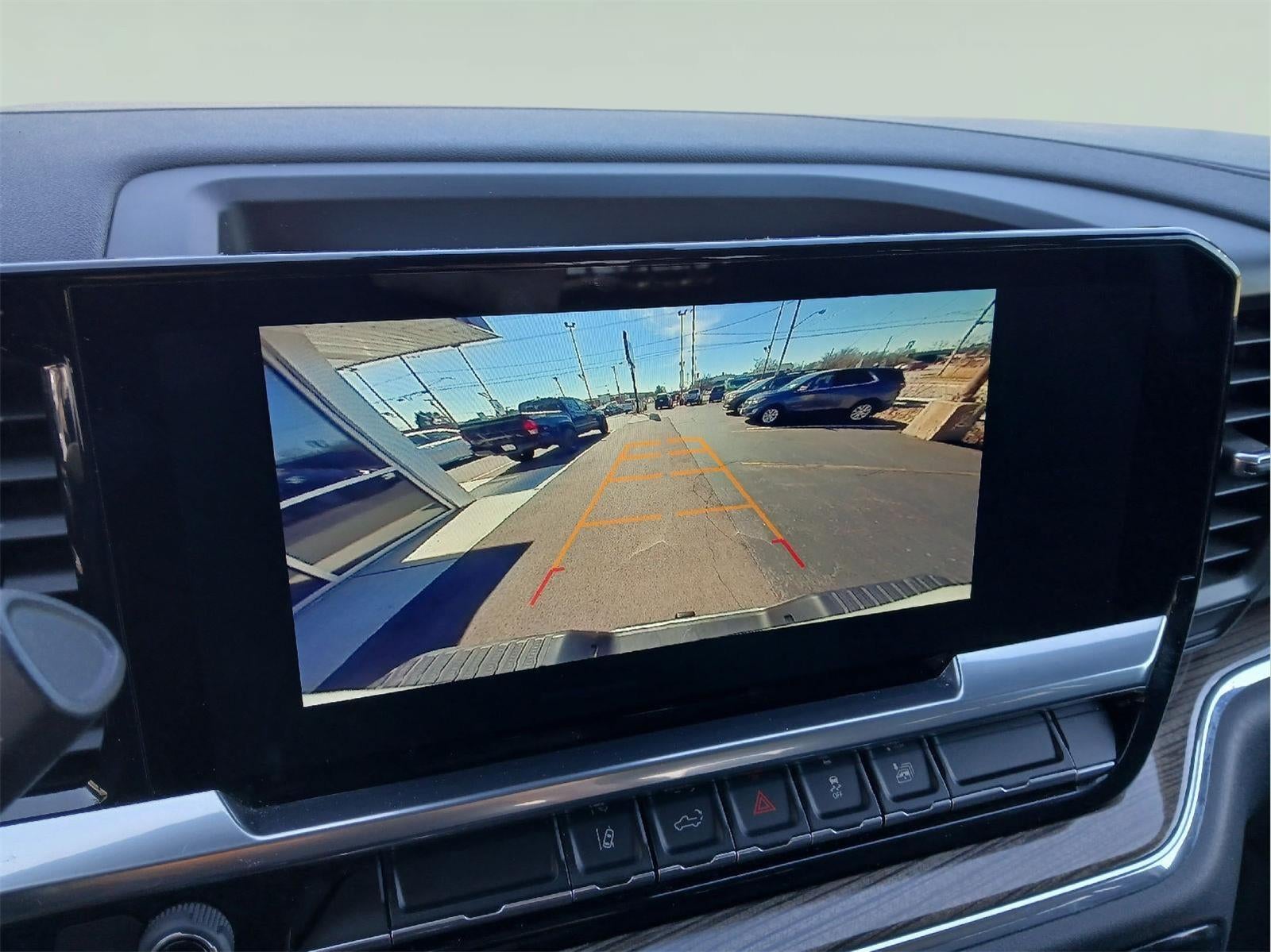

• Hitch Guidance dynamic single line to aid in trailer alignment for hitching (Deleted with (ZW9) pickup bed delete.)
• Lane Departure Warning
• Following Distance Indicator
• Seat Belt Adjustable Guide Loops
• front row only (Included and only available on Crew Cab and Double Cab models.)
• Buckle to Drive prevents vehicle from being shifted out of Park until driver seat belt is fastened; times out after 20 seconds and encourages seat belt use
• can be turned on and off in Settings menu
• Rear Seat Belt Indicator (Requires Crew Cab or Double Cab model.)
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob
• to help encourage safe driving behavior. It can limit certain available vehicle features
• and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• 3 Years of Remote Access. The Remote Access Plan gives you simplified remote control of your properly equipped vehicle and unlocks a variety of great features in your myChevrolet mobile app. See dealer for details. (Remote Access Plan does not include emergency or security services. See onstar.com for details and limitations. Available on select Apple and Android devices. Service availability
• features and functionality vary by vehicle
• device
• and the plan you are enrolled in. Terms apply. Device data connection required.)

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 170
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): - TBD -
• Gross Axle Wt Rating - Rear (lbs): - TBD -
• Curb Weight - Front (lbs): 4013
• Curb Weight - Rear (lbs): 2812
• Gross Vehicle Weight Rating Cap (lbs): 10450
• Gross Combined Wt Rating (lbs): 24500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 16000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1600
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 18400
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4600
• Maximum Trailering Capacity (lbs): 20000
• Suspension
• Suspension Type - Front: Short/Long Arm
• Suspension Type - Rear: Multi-Leaf Springs
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 51
• Shock Absorber Diameter - Rear (mm): 51
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.0 x 1.6
• Rear Brake Rotor Diam x Thickness (in): 14.1 x 1.3
• Tires
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QHQ
• Spare Tire Order Code: ZHQ

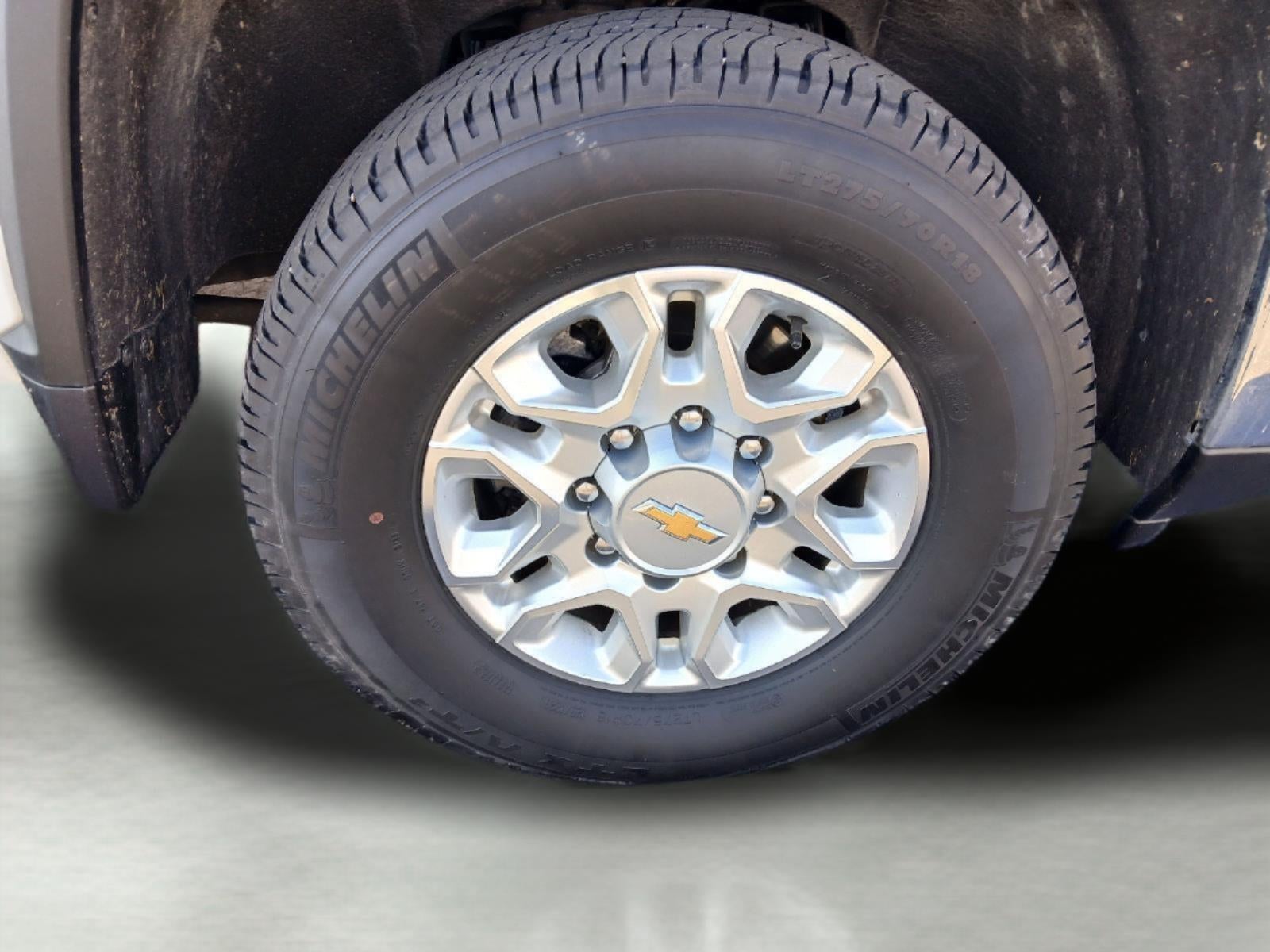

• Front Tire Size: LT245/75R17
• Rear Tire Size: LT245/75R17
• Spare Tire Size: LT245/75R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -

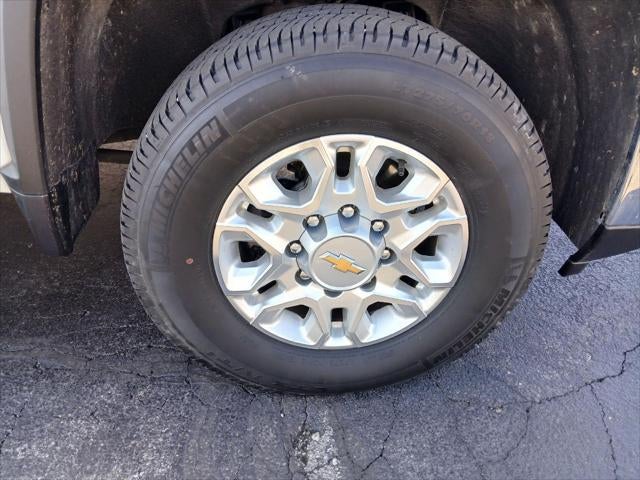

• Wheels
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 52.7
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 158.94
• Length, Overall (in): 250.04
• Width, Max w/o mirrors (in): 81.85
• Height, Overall (in): 79.82
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 42.17
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.12
• Ground Clearance, Rear (in): 10.12

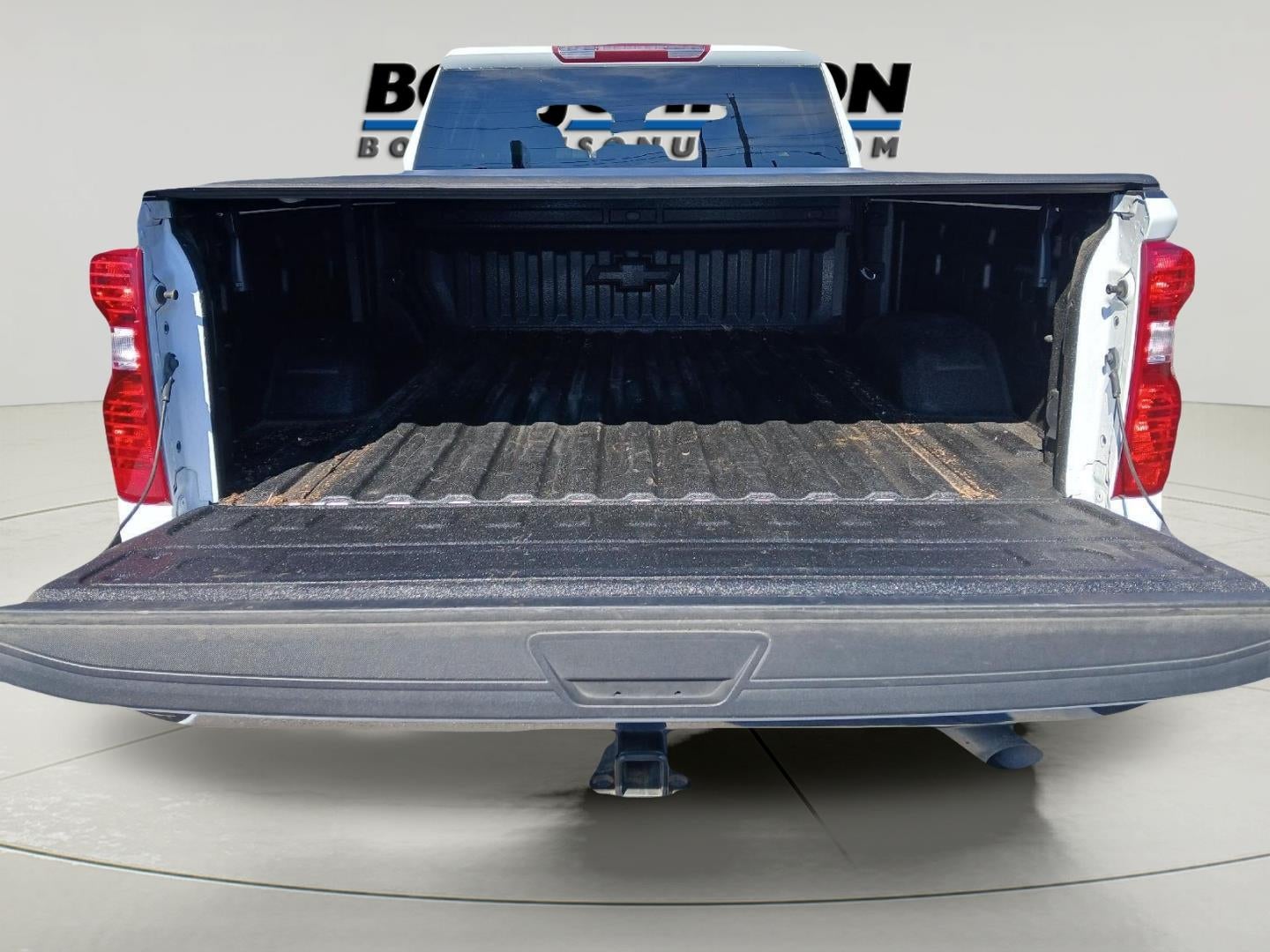

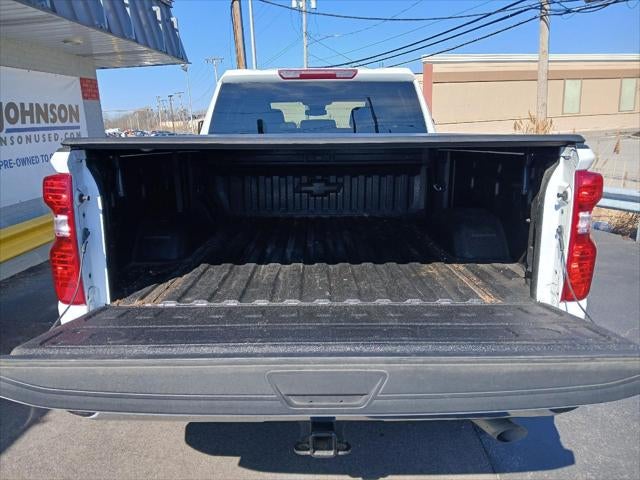

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 82.25
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 51.85
• Cargo Box (Area) Height (in): 21
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 69.5
• Ext'd Cab Cargo Volume (ft³): - TBD -

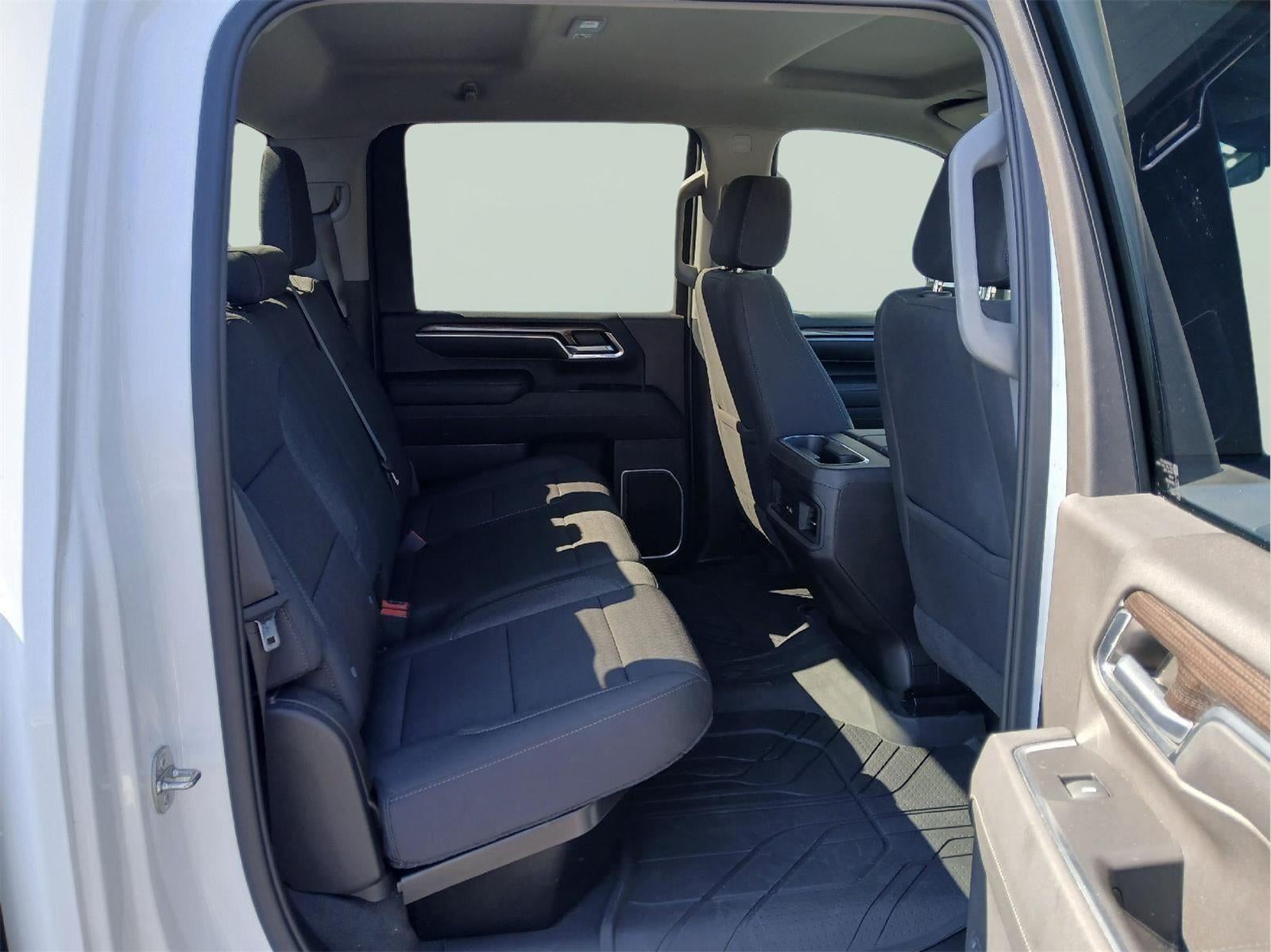

• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.3
• Second Hip Room (in): 60.24

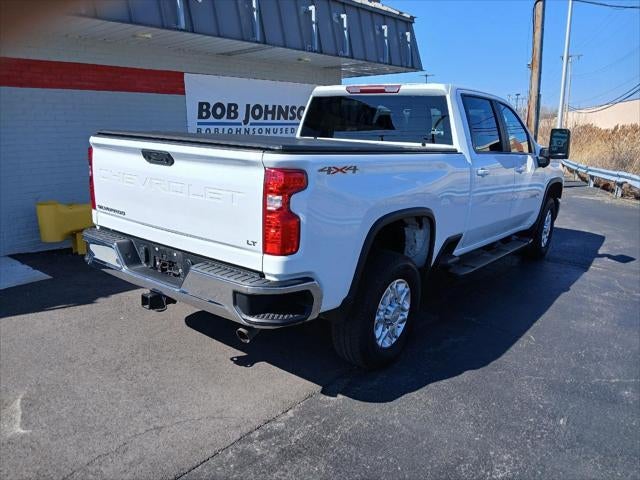

• Summary

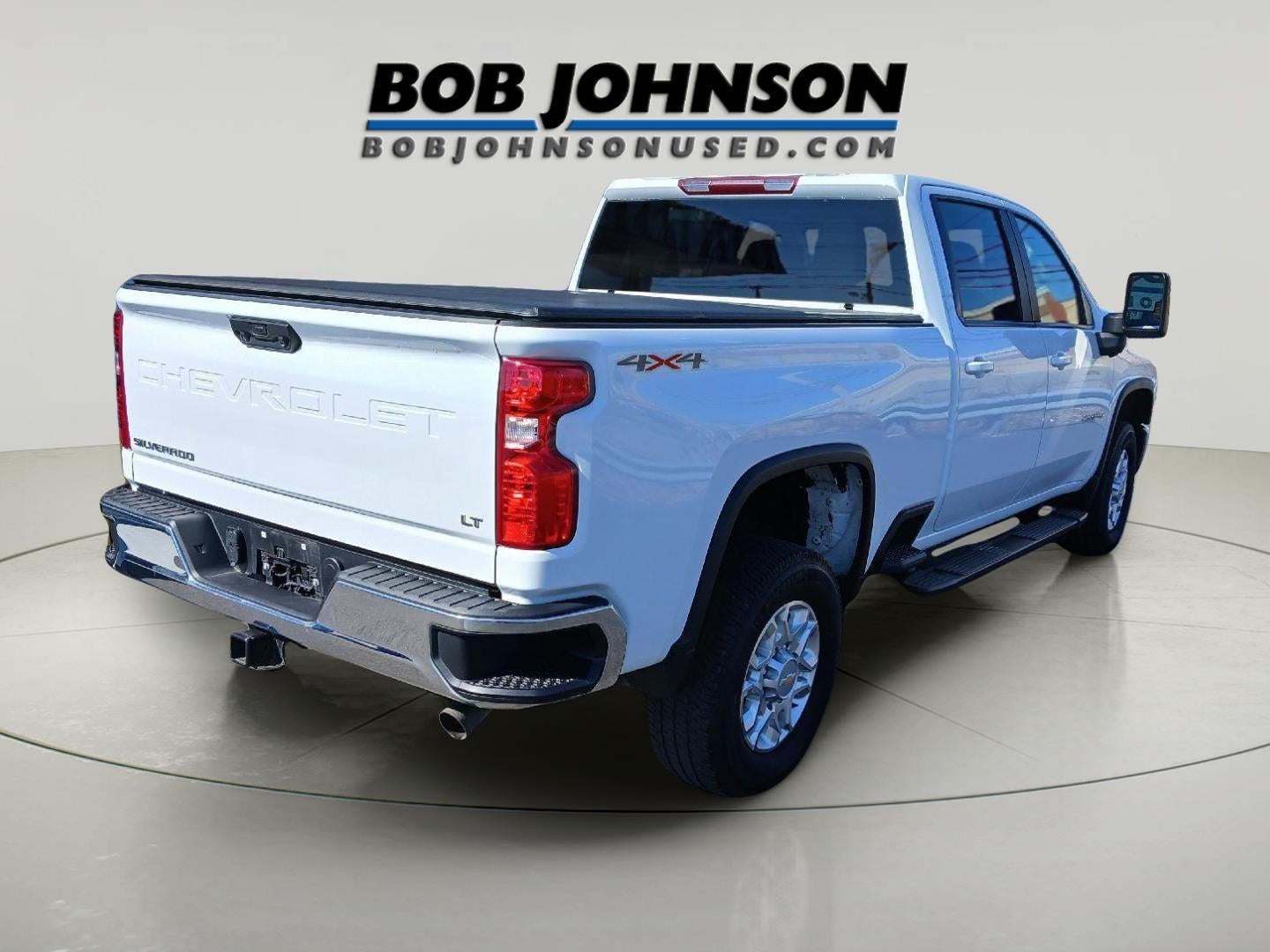

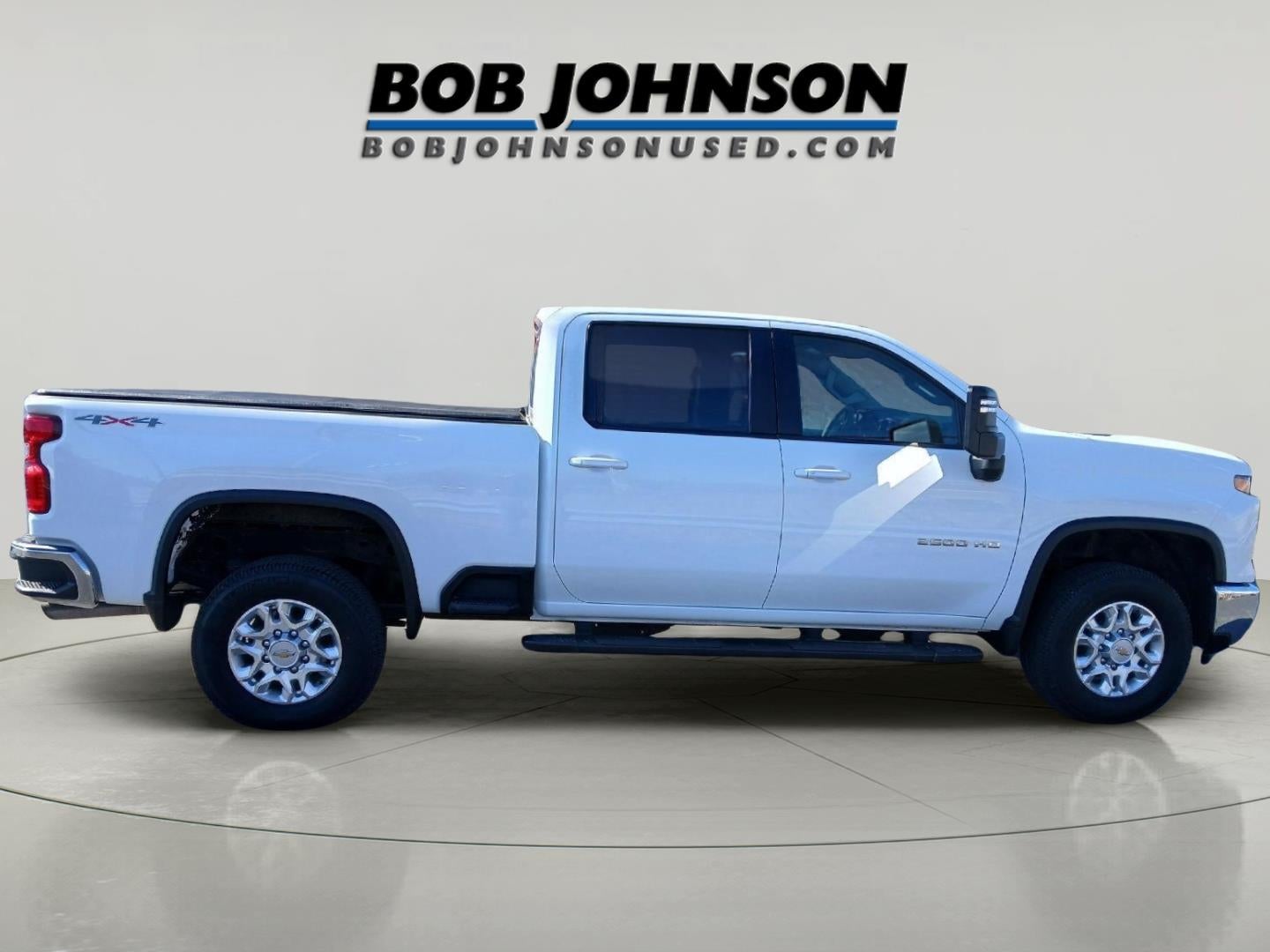

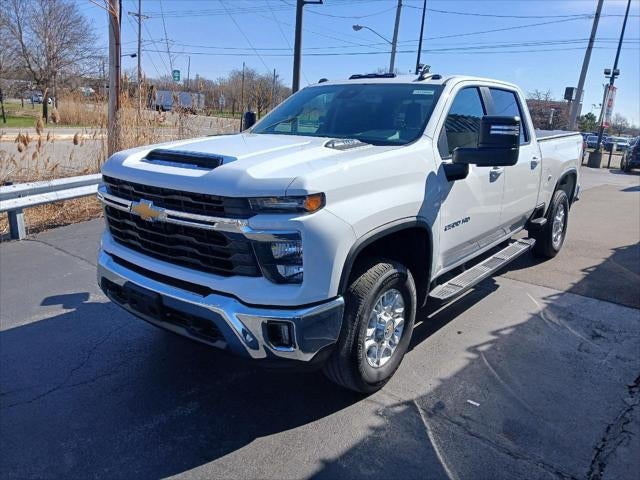

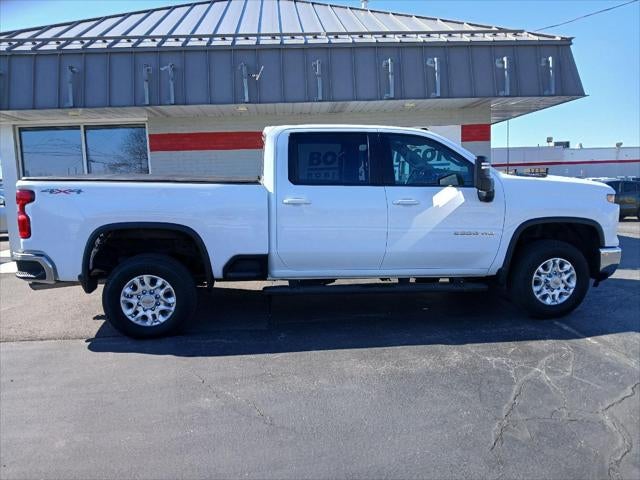

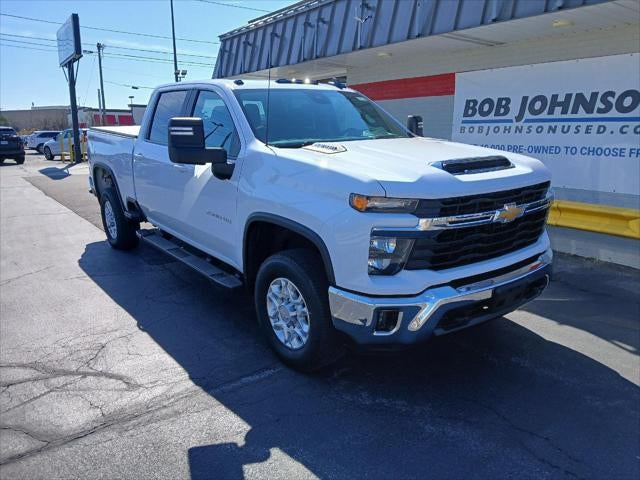

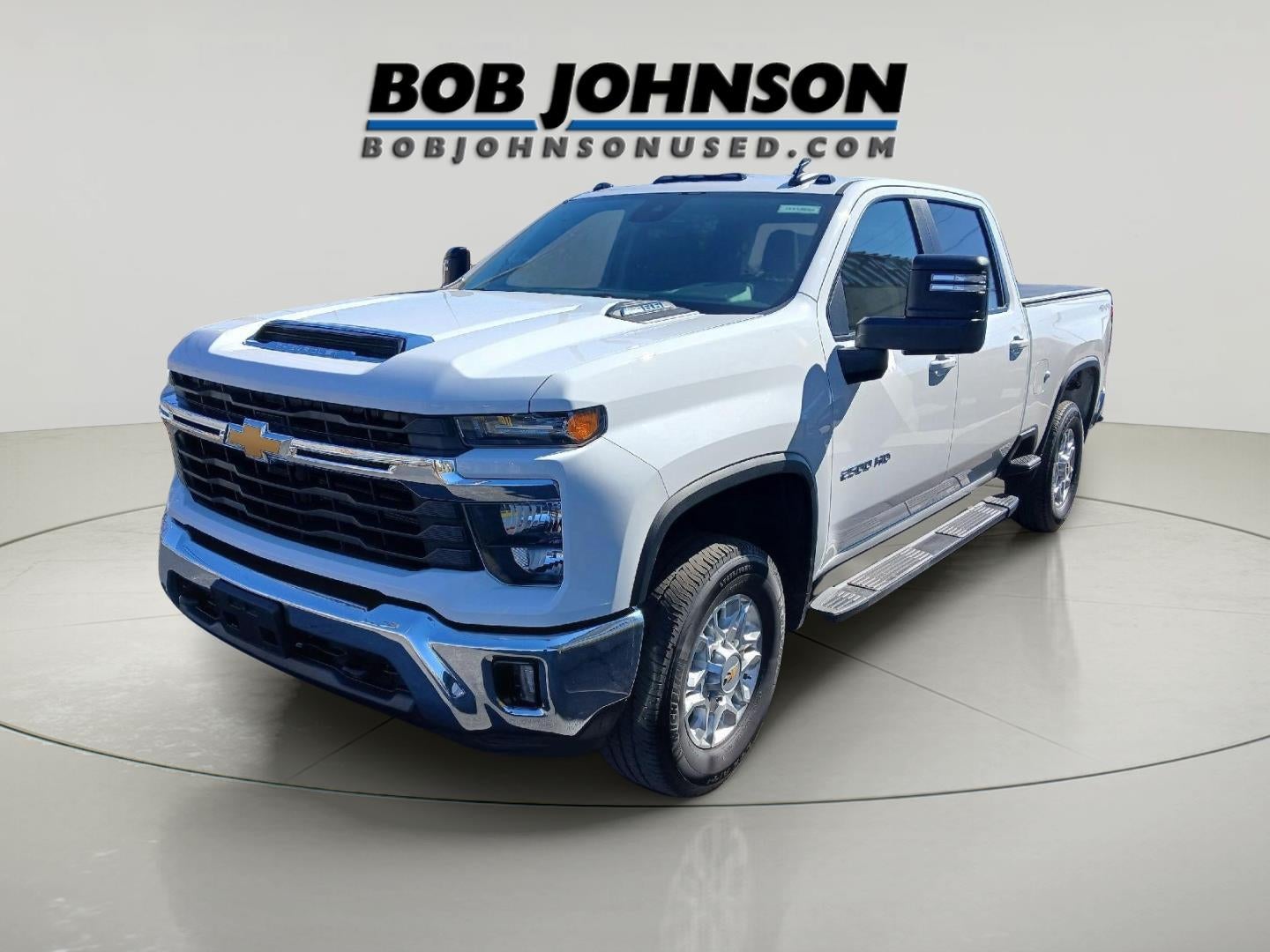

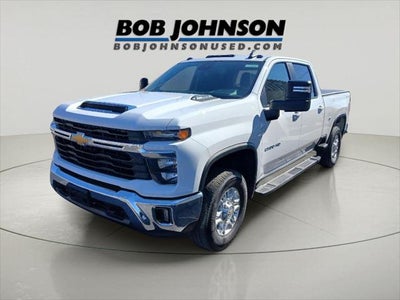

• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
